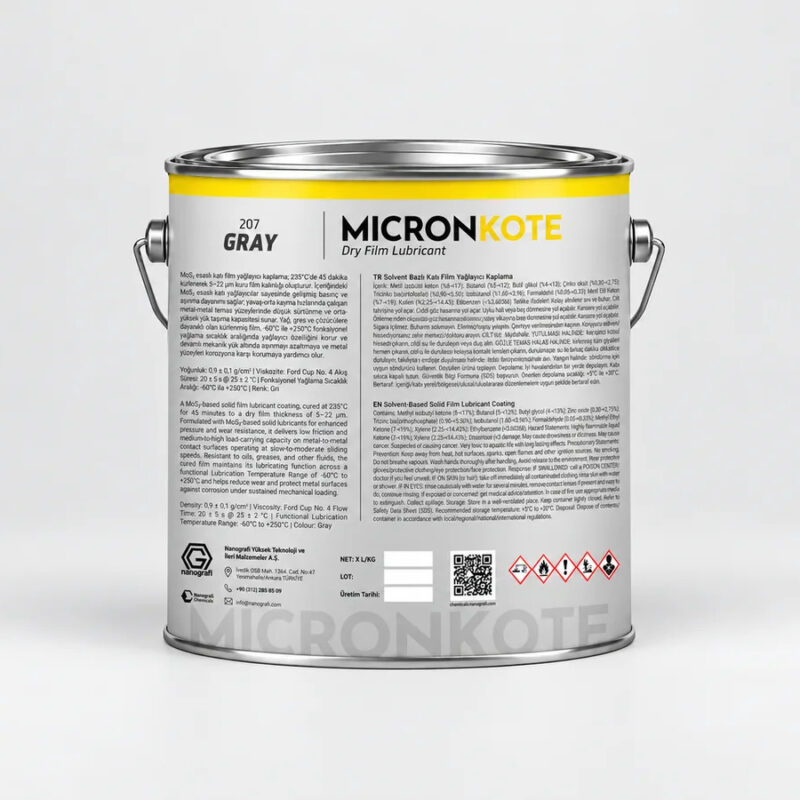

Micronkote 207
Micronkote 207 is a solvent-based dry film lubricant coating formulated with MoS2-based solid lubricants, organic binders and solvents. It cures at 235 °C for 45 minutes into a grey, durable film with a recommended dry film thickness of 5-23 µm, and is designed to provide permanent lubrication on metal-to-metal contact surfaces operating at slow to moderate speeds under medium to high loads.
The coating is suitable for applications where the use of conventional oil or grease lubrication is impractical or undesirable. The cured film provides high resistance to pressure and wear, keeps its lubricating function from -60 °C to +250 °C, and helps protect metal surfaces against corrosion.
Key technical specifications
- Product type
- Solvent-based dry film lubricant coating, MoS2-based
- Suitable surfaces
- Metal-to-metal contact surfaces
- Colour
- Grey
- Density
- 0.9 ± 0.1 g/mL
- Dry film thickness
- 5-23 µm
- Curing conditions
- 235 °C / 45 min
- Functional lubrication temperature range
- -60 °C to +250 °C
- Application method
- Spray gun
- Viscosity
- 20 ± 5 sFord Cup No. 4, 25 ± 2 °C
- Salt spray resistance
- 48 h – Rating No. 90.25 mm mean creep
What is Micronkote 207?
Micronkote 207 is a grey, solvent-based dry film lubricant coating formulated with MoS2-based solid lubricants, organic binders and solvents. It is supplied as a liquid, applied by spray gun, and cured at 235 °C for 45 minutes to leave a durable dry film with a recommended thickness of 5-23 µm.
It is used to provide permanent lubrication on metal-to-metal contact surfaces where the use of conventional oil or grease lubrication is impractical or undesirable, or where contamination caused by oil or grease must be avoided. Micronkote 207 is part of the Micronkote dry film lubricant range.
The product is primarily designed for application on metal surfaces, particularly metal-to-metal friction pairs. It does not provide adequate adhesion on polymeric surfaces, so its use on plastic and other polymer-based surfaces is not recommended. Prior to application, the compatibility of the coating with the surface should be evaluated and confirmed under the intended application and operating conditions.
What it is
A MoS2-based dry film lubricant coating, supplied as a solvent-based liquid and heat-cured into a grey, durable film of 5-23 µm.
What it solves
Friction and wear on metal-to-metal contact surfaces under medium to high loads, where oil or grease lubrication is impractical or undesirable.
Where it is used
Metal-to-metal contact surfaces and friction pairs operating at slow to moderate sliding speeds under medium to high loads.
Why a dry film
The lubricant is bonded to the surface instead of held as a fluid film, avoids the contamination caused by oil or grease, and stays functional from -60 °C to +250 °C.
How Dry Film Lubrication Works
MoS2-based solid lubricants are carried in organic binders and solvents. Cured at 235 °C for 45 minutes, the binder anchors them to the prepared substrate as a continuous grey film of 5-23 µm.
MoS2-based solid lubrication reduces friction between metal surfaces and provides durable protection under high contact pressure and demanding wear conditions.
The cured film helps protect metal surfaces against corrosion, with salt spray resistance of 48 h at Rating No. 9 (0.25 mm mean creep).
Technical Performance
| Property | Test condition | Specification | Standard |
|---|---|---|---|
| As supplied | |||
| Viscosity | Ford Cup No. 4 flow time, 25 ± 2 °C | 20 ± 5 s | Internal test |
| Density | - | 0.9 ± 0.1 g/mL | Internal test |
| Curing temperature | - | 235 °C | Internal test |
| Curing time | - | 45 min | Internal test |
| As cured | |||
| Colour | - | Grey | ASTM D2244 |
| L* | - | 25.00 to 35.00 | ASTM D2244 |
| a* | - | -0.10 to -0.02 | ASTM D2244 |
| b* | - | -1.10 to -1.01 | ASTM D2244 |
| Functional lubrication temperature range | - | -60 °C to +250 °C | Internal test |
| Salt spray resistance | 0.25 mm mean creep | 48 h – Rating No. 9 | Internal test |
Features and Benefits
- High lubrication performance
- MoS2-based solid lubrication for reliable friction reduction.
- High pressure and wear resistance
- Provides durable protection under high-contact-pressure and demanding wear conditions.
- High corrosion protection
- Helps protect metal surfaces against corrosion; salt spray resistance is 48 h at Rating No. 9 (0.25 mm mean creep).
- Suitable for heavy-load applications
- Designed for applications involving medium to high loads.
- Long service life
- Provides durable dry-film lubrication for extended operating periods.
- Wide functional temperature range
- Lubricates from -60 °C to +250 °C.
- Spray application for series production
- Suitable for spray application and integration into serial production processes.
- Grey film appearance
- Forms a uniform grey-coloured film after curing.
Applications
Designed for metal-to-metal contact surfaces and friction pairs, including mechanical components operating at slow to moderate sliding speeds.
Suitable for sliding surfaces subjected to medium to high loads and for mechanisms operating under heavy-load conditions.
Particularly suitable for friction pairs operating under high contact pressure and low-speed conditions, and for applications involving low sliding speeds or oscillating motion.
For components requiring permanent dry-film lubrication, and for applications where the use of conventional oil or grease is impractical or undesirable or where contamination caused by oil or grease must be avoided.
Suitable for spray application and for metal components requiring coating in series production processes.
Surface Preparation and Application
Curing Conditions
Cure the coated parts in an oven for 45 minutes at 235 °C. Surfaces must be thoroughly cleaned, dry and free from oil and grease before application. Recoating or additional surface treatment of the fully cured coating is not recommended; coated surfaces should preferably be left as the final functional surface.
Technical Test Results
| Test | Result | Standard |
|---|---|---|
| Thermal stability | Pass, no deformation | IEC 60068-2-12 |
| Resistance to humidity | Pass, no deformation | EN ISO 6270-1 |
| Resistance to fluids | Pass, no deformation | EN ISO 2812-1 |
| Cross-cut test | Pass, no deformation | ASTM D3359 |
Values are taken from the current Micronkote 207 technical data sheet. Properties that are not stated in the source documents are not published here.
Storage, Handling and Packaging
Storage temperature: +5 °C to +30 °C. Store the product in its unopened original packaging in a dry, well-ventilated area, protected from direct sunlight and away from heat, sparks, open flames and other sources of ignition. Keep the container tightly closed, and close it immediately after use to prevent solvent loss and possible changes in product properties. During prolonged storage, settling of the solid lubricants may occur; mix the product thoroughly before use until a homogeneous consistency is achieved.
Shelf life: 12 months from the date of manufacture.
Packaging: supplied in sealed containers; the net fill is stated on the product label. Contact us for currently available pack sizes.
Safety: Micronkote 207 is a solvent-based product classified under CLP Regulation (EC) No 1272/2008 with the signal word Danger. It is a highly flammable liquid and vapour, causes skin irritation and serious eye damage, may cause drowsiness or dizziness, may cause cancer, is suspected of causing cancer, and is very toxic to aquatic life with long lasting effects. Read the Safety Data Sheet in full and follow the precautions on the product label before handling. Transport classification: UN 1224, Class 3, Packing Group II.
Frequently Asked Questions
Micronkote 207 is a grey, solvent-based dry film lubricant coating formulated with MoS2-based solid lubricants, organic binders and solvents. It is applied as a liquid and cured into a durable dry film of 5-23 µm for metal-to-metal contact surfaces.
Yes. Micronkote 207 is a dry film (solid film) lubricant coating. The lubricant is bonded to the surface as a solid layer rather than applied as an oil or grease.
It provides permanent lubrication on metal-to-metal contact surfaces operating at slow to moderate speeds under medium to high loads, where conventional oil or grease lubrication is impractical or undesirable.
Micronkote 207 is cured at 235 °C for 45 minutes.
The recommended dry film thickness is 5 to 23 µm.
-60 °C to +250 °C.
Salt spray resistance is 48 hours at Rating No. 9, with 0.25 mm mean creep.
No. The product is primarily designed for metal surfaces, particularly metal-to-metal friction pairs. It does not provide adequate adhesion on polymeric surfaces, so its use on plastic and other polymer-based surfaces is not recommended.
By spray application using a spray gun, onto thoroughly cleaned, dry surfaces that are free from oil and grease, then cured at 235 °C for 45 minutes.
Recoating or additional surface treatment of the fully cured coating is not recommended. Coated surfaces should preferably be left as the final functional surface.
In its unopened original packaging at +5 °C to +30 °C, in a dry, well-ventilated area away from direct sunlight, heat, sparks and open flames. Shelf life is 12 months from the date of manufacture.
Both documents are linked at the top of this page. Use the Download TDS button for the Technical Data Sheet and the Download SDS button for the Safety Data Sheet.
