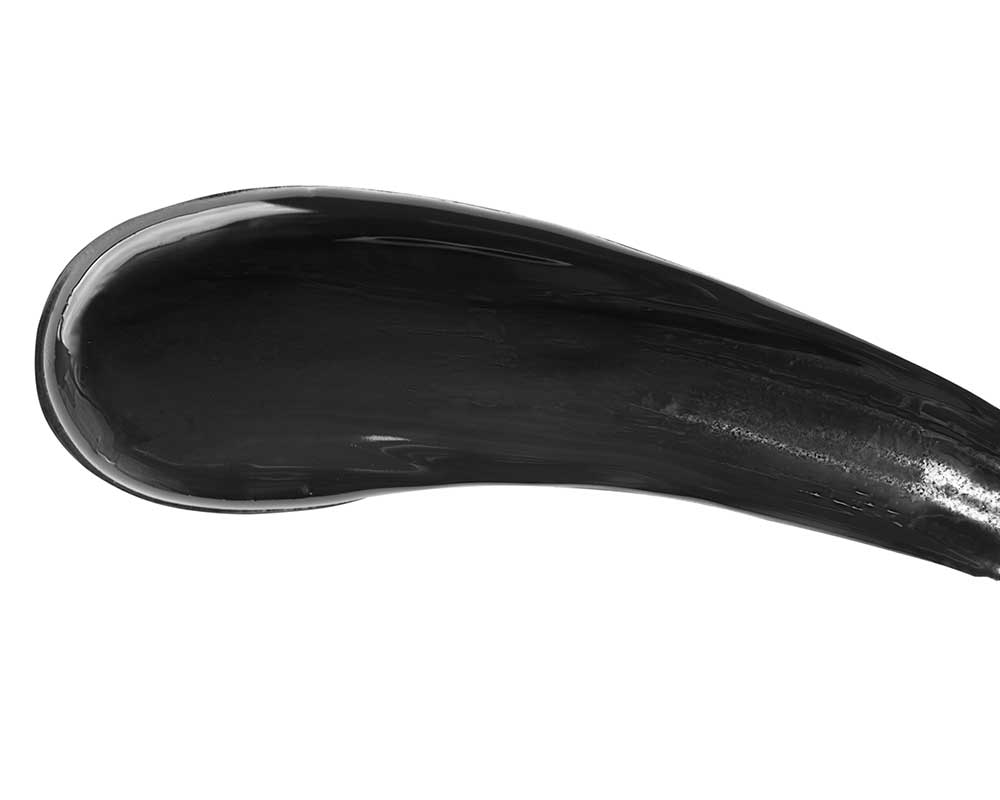

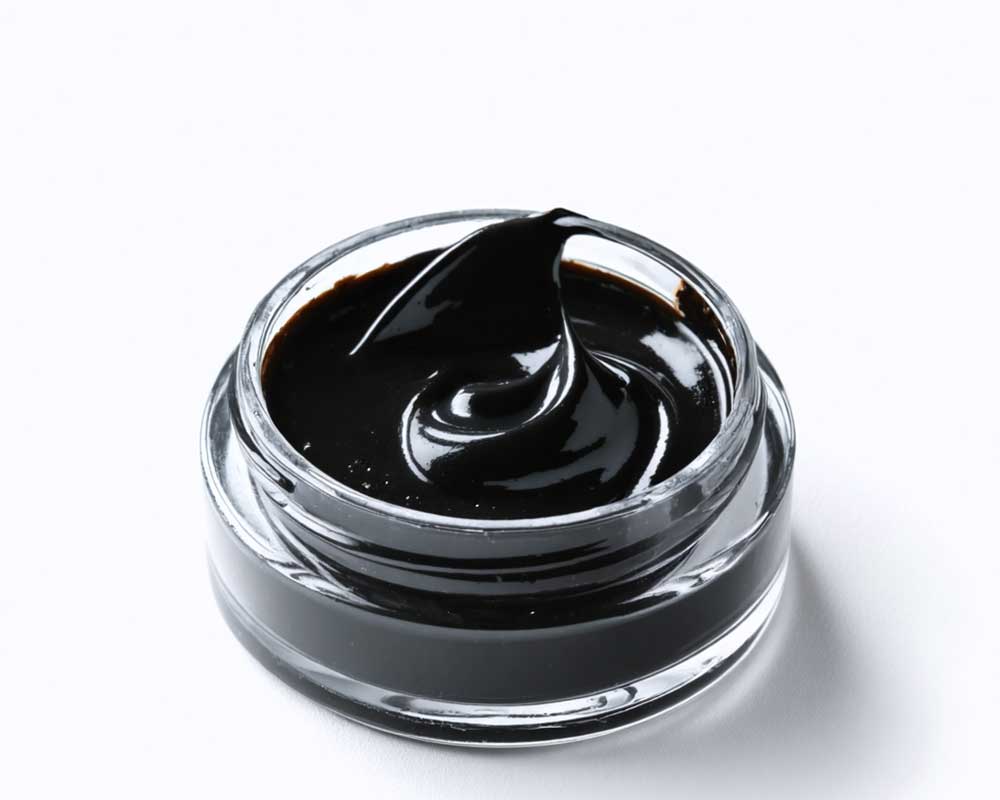

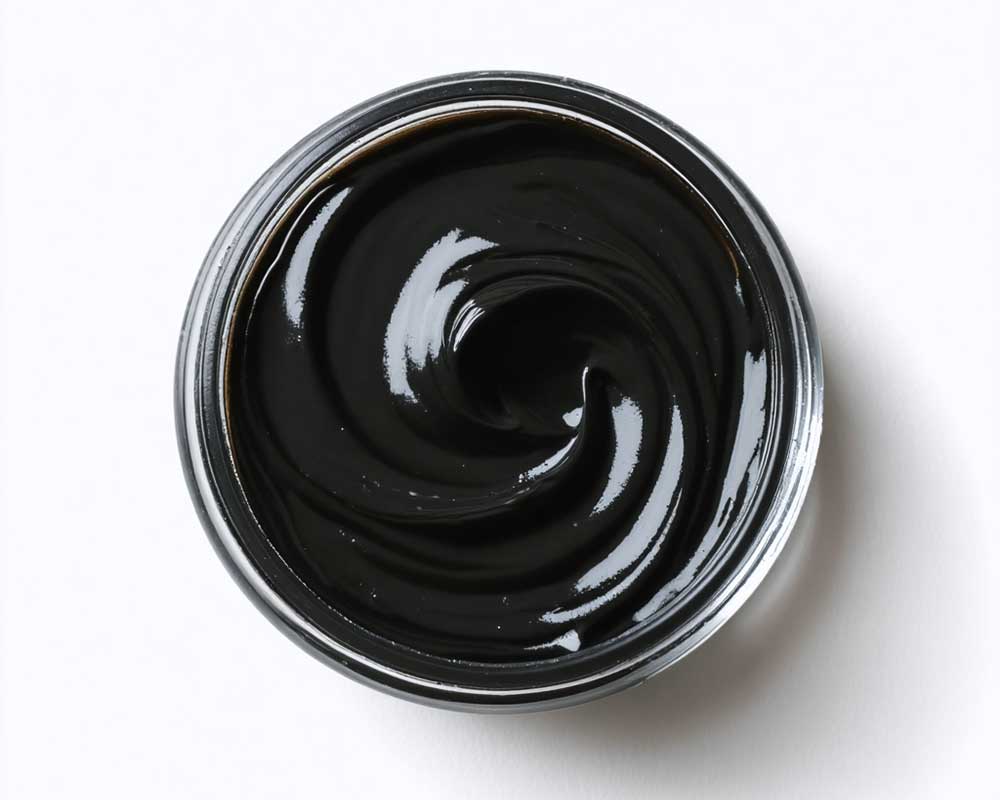

Carbon Paste
We produce conductive carbon paste, a high-performance material that combines exceptional electrical conductivity, strong adhesion, and chemical stability. Ideal for a wide range of applications, our carbon paste serves as a reliable electrode in electrochemistry, a key component in sensors, and an essential element in electronics, rapidly becoming a sought-after material for solar panel development, while also offering various formulations such as thermoplastic paste, carbon montage paste, carbon assembly paste, carbon gripper paste, and carbon paste seatpost.
Applications of Carbon Paste
Carbon Paste is used as an exciting material, especially in renewable energy and solar energy systems. It has many uses due to its wide compatibility, customizable structure, excellent conductive properties, and being a part of energy storage and conversion systems.
Technical Properties
Test | Properties |
Viscosity (Uncured) | 2.5-5.0 Pa.S |
Thickness (Cured) | 15-20 µm |
Sheet Resistance (Cured) | 100 Ω/sq/mil |
Adhesion | 5B |
Hardness | 6H |
Substrate | PET, Glass, FR4 |
Screen | 13 µm emulsion, 325 DPI, SS |
Flood Speed | 50 mm/s |
Print Speed | 50 mm/s |
Applications
- Printed electronics
- Sensors and biosensor
- PV cells
- Membrane keyboards
- Energy storage devices
- Automative electronics
